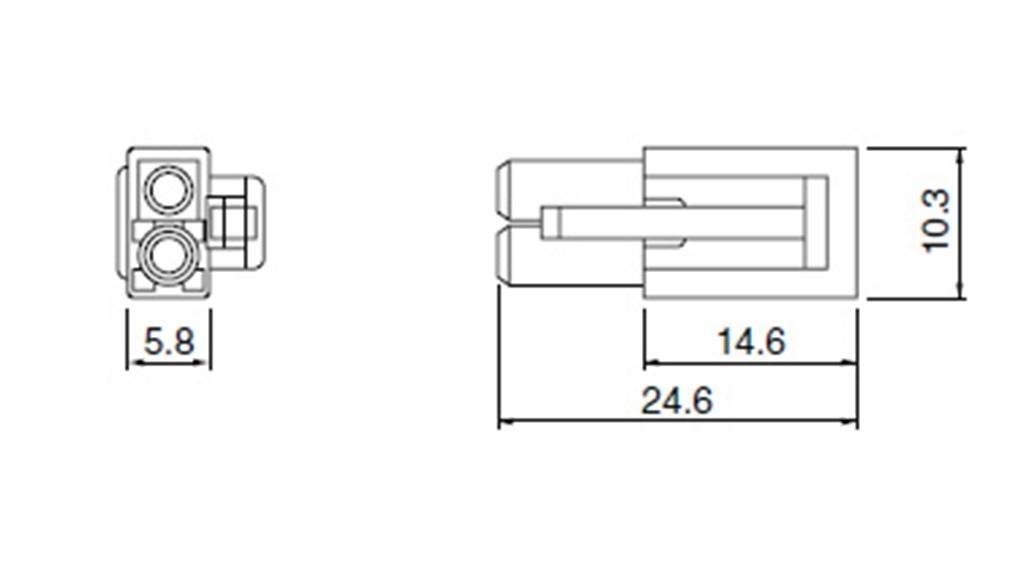

PORTA HEMBRAS 2 VIAS

Porta hembras serie el paso 4.50mm 2 vías. Current rating: 10A AC, DC max.
Voltage rating: 300V AC, DC max.
Temperature range: -25°C to +90°C
(including temperature rise in applying
electrical current)
Contact resistance: Initial value/7m W max.
After environmental testing/10m W max.
Insulation resistance: 1,000M W min.
Withstanding voltage: 1,500V AC/minute
Applicable wire: AWG #26 to #16
0.13 to 1.25mm2
Applicable panel thickness: 0.8 to 2.0mm(.031" to .079")
* Contact JST for details.
Note: The current rating varies depending on the number of
circuits and the wire size used in each connector. The
table below lists the current rating as a function of the
number of circuits and the wire size.

• Tipo: Conector
• Conector: Caja
• Pines: 2
• Versión: Hembra
• Forma: Recto
